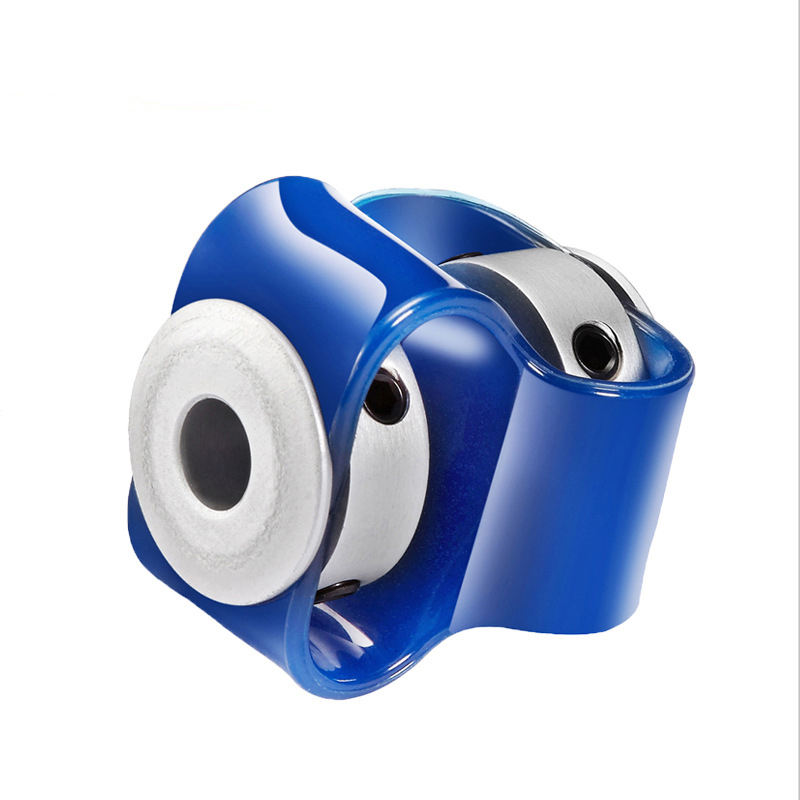

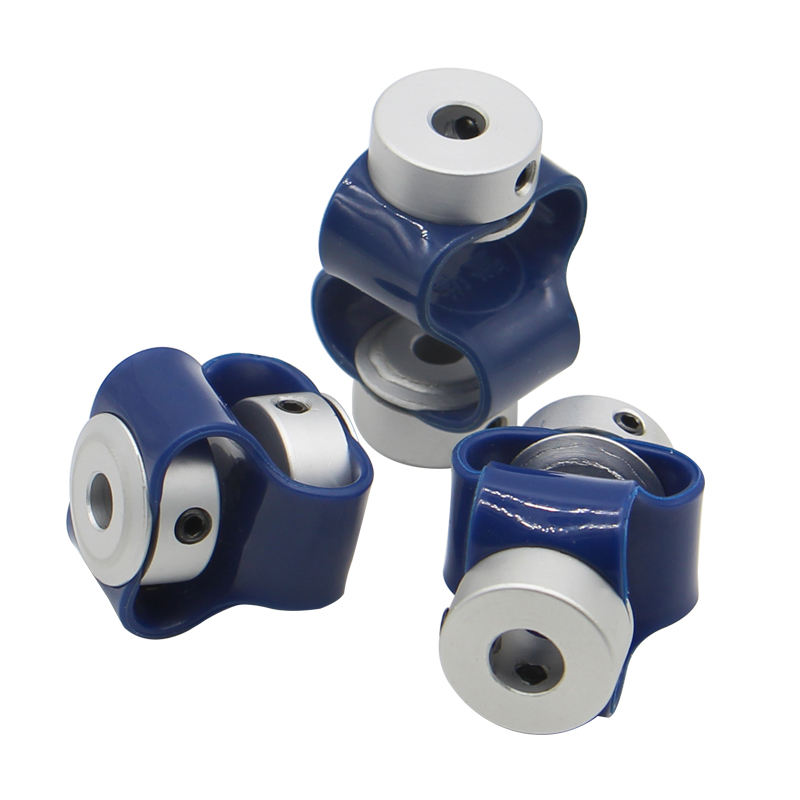

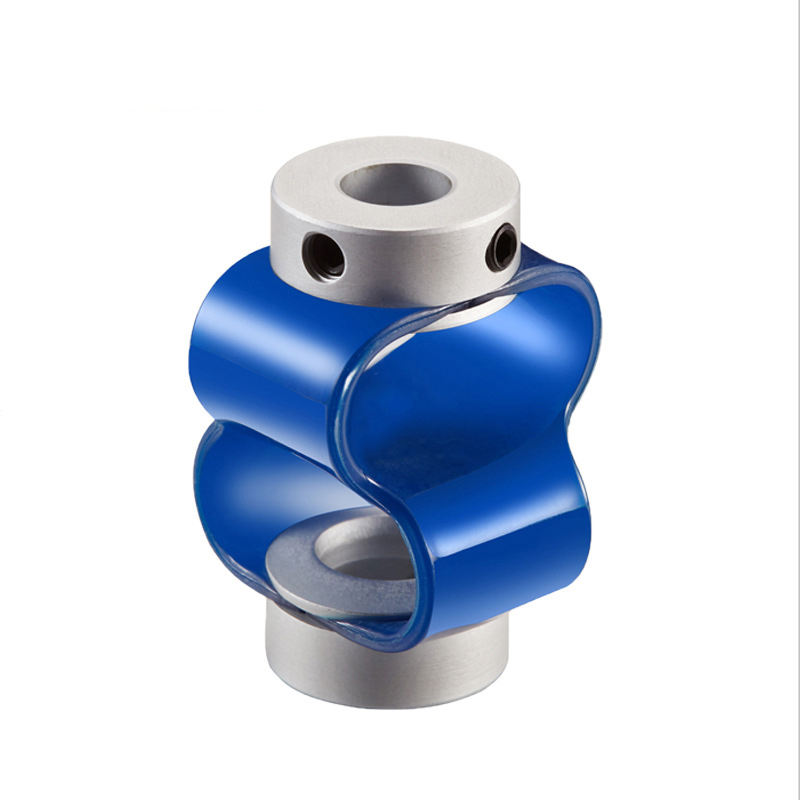

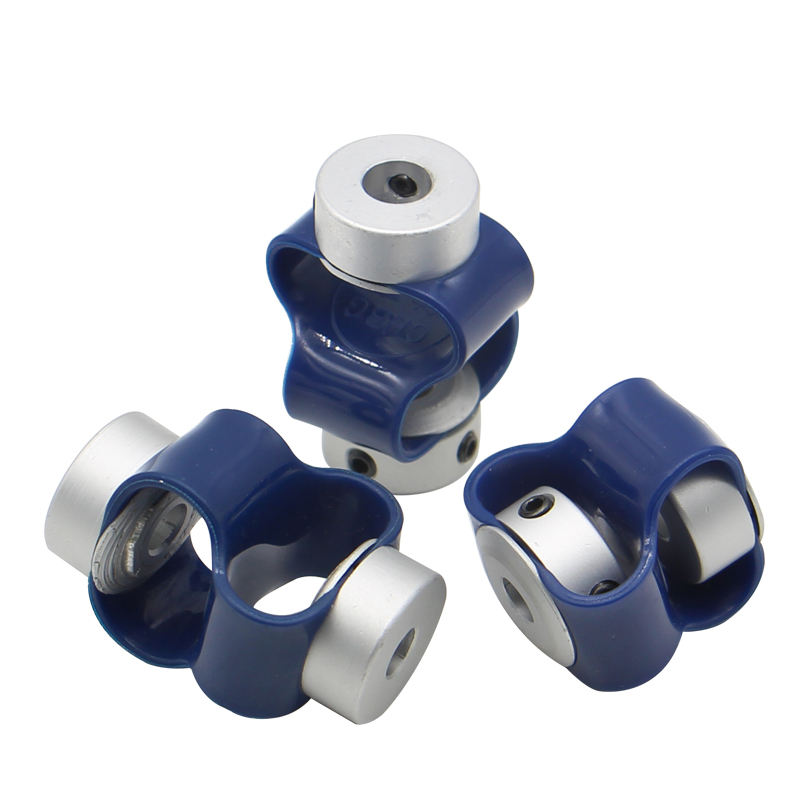

YUMO 8-shaped coupling stepping servo motor torque Flexible couplings
Specifications :
1.Solid, Single Split, Double Splits, Threaded Shaft Collars
2.ISO 9001 certificated
3. Encoder shaft coupling is a new kind of shaft coupling designed for encoder specially.

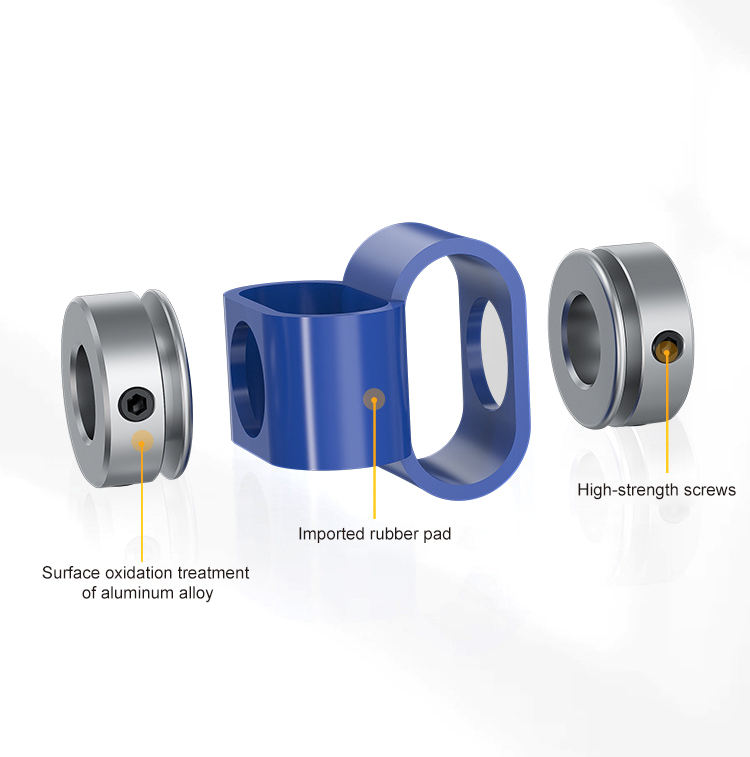

4. It is made of Aluminum and PE.
5. Flexible and not easy to be broken.
6. Corrosive and oxidation resistance.
Dimensions :
Width tolerance +0.076mm/-0.254mm
Bore tolerance +0.050mm/+0.012mm
Note Available with keyways Opposing screws available weights are approximate
Materials :
Material Steel,stainless steel,Aluminum or other specified materials
Surface treatment Black oxide,self colour oiled,zinc plated or other specified treatment.
Applications :
Couplings are for applications such as servo drive technology, machine tools, packaging machinery, automation systems, printing presses, industrial robots, control and positioning technology, and general mechanical engineering.
Set screw shaft collar
Set screw shaft collar
Set Collar
Set screw shaft collar
Locking Collar
Set screw shaft collar
Set Collar set screw shaft collar
Locking collar retaining ring
Dimensions
| Model | D | L | d1 d2 Shaft Dia. | L3 | M | Tighten torque(N.m) |
| LR2-S-14 22/XX/XX | 14 | 22 | 4 | 3.2 | 3 | 0.7 |
| LR2-S-16 22/XX/XX | 16 | 22 | 6 | 3.2 | 3 | 0.7 |
| Model | Rated torque(N.m) | Max torque(N.m) | Max speed(rpm) | Angular deviation(ºC) | Weight(g) |
| LR2-S-14 22/XX/XX | 0.6 | 1.2 | 6000 | 3 | 3 |
| LR2-S-16 22/XX/XX | 0.8 | 1.6 | 6000 | 3 | 4 |
